混凝試驗攪拌器MY3000梅宇六聯電動攪拌機技術參數：

①可設程序數量：20 種；每種自動無級變速10次

②速度梯度G值：10 ~1000秒 ^-1

③轉速范圍：0 ~ 1000轉/分    ± 0.01%

④時間范圍：0~99分59秒 x10    ±0.01秒

⑤測溫范圍：0~50℃            ±0.1℃

⑥電壓：~220V                 ±5%

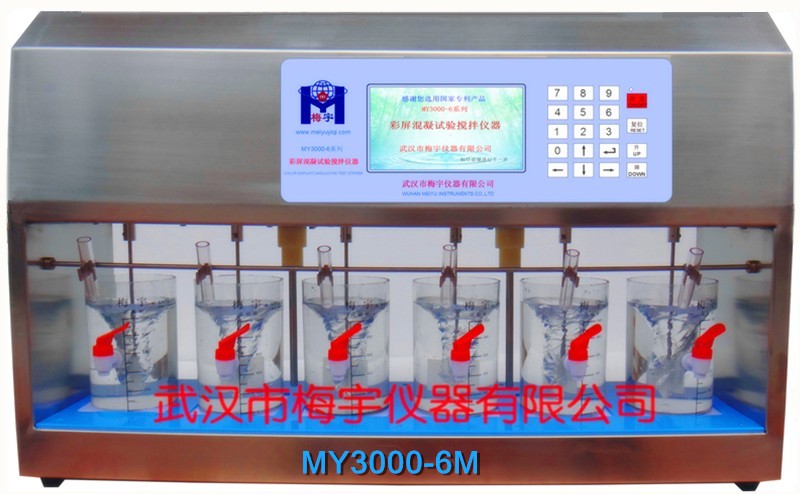

MY3000-6M color-display coagulation test stirrer Main performance:

1.Microcomputer controlled 7-inch ultra-large color LCD with HD display in both Chinese and English enables the operator to operate according to menu and prompt and dynamically displays various parameters when stirring.

2.20 groups of procedures are stored in the machine. Each group of procedure can enable 10 segments of rotation rates (range of rotation speeds: 0-1,000 RPM). Runtime of each segment is 0-99min and 59s.

3.Six stirring shafts can run in a synchronous way or asynchronous way independently.

4.The stirrer shaft rises and falls vertically and automatically to more easily protect formation of alumen ustum, and automatically rises after the stirring procedure finishes. Besides, it can select different calculation methods to calculate G/GT value according to test glasses of different volumes.

5.The automatic dosing system can add materials to the beaker synchronizedly before each segment of program starts, and can realize automatic dosing of multiple varieties for many times.

6.Reliable high-precision stepper motor whose rotation rate is controlled by digital signal of computer chip and is precise with repeatability error being zero.

7.Outfitted with high-precision temperature sensor to test water temperature or ambient temperature, with result displayed on the screen in real time with the accuracy of 0.1°.

8.The appearance is neat and graceful, as the instrument adopts integration design which eliminates the hidden trouble of low safety performance of exposed cable connection in split design.

9.prompt of "Di-Di" after the test is over

10.On the base of stirrer's test glass is arranged LED lamp to clearly show the formation, size and precipitation process of alumen ustum.

11.Gift the user dedicated round (or square) lucite test glass and test tube .

12.Stirring without mechanical drive avoids defects of drive components such as belt and gear of traditional mechanical stirrer.

13.Stainless steel crate which is rot-proof, antirust and wearable prolongs the longevity of instrument.



MY3000-6M color-display coagulation test stirrer Major parameters:

1.Quantity of procedures that can be set: 20; each automatically changes speeds for 10 times.

2.G value of velocity gradient:10~1,000s - 1

3.Range of rotation speeds:0~1,000 RPM    ±0.01%

4.Time range:0~99min and 59s x 10     ±0.01s

5.Temperature measurement scope:0~50℃    ±0.1℃

6.Voltage:0~220v     ±5%
